26RES

Rear L-shape Sectional, best campside view

New Floorplan

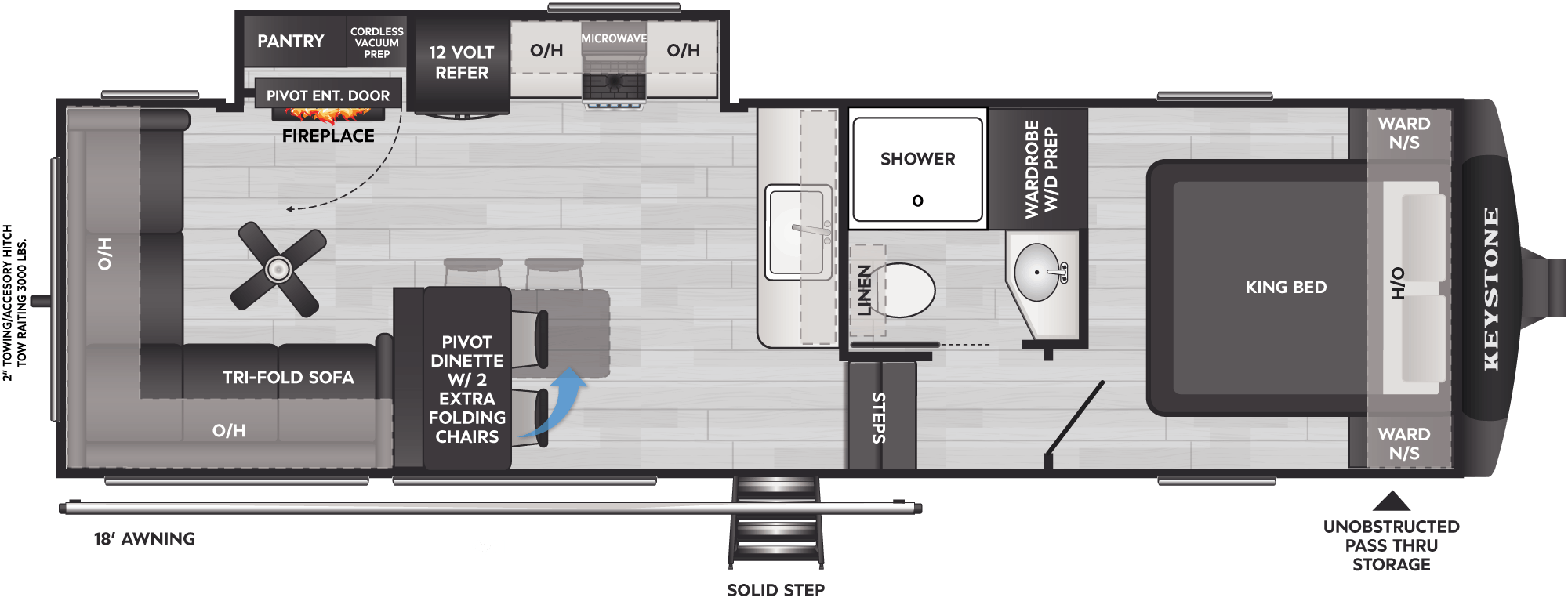

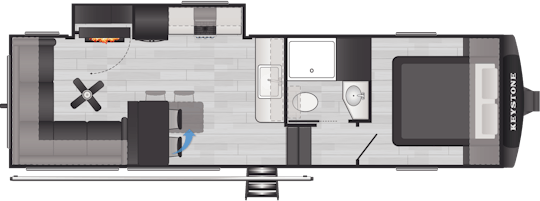

Floorplan of RV model 26RES
MSRP:$64,595*
Base price. Does not include freight, title, tax, options or dealer fees.
Build & Price

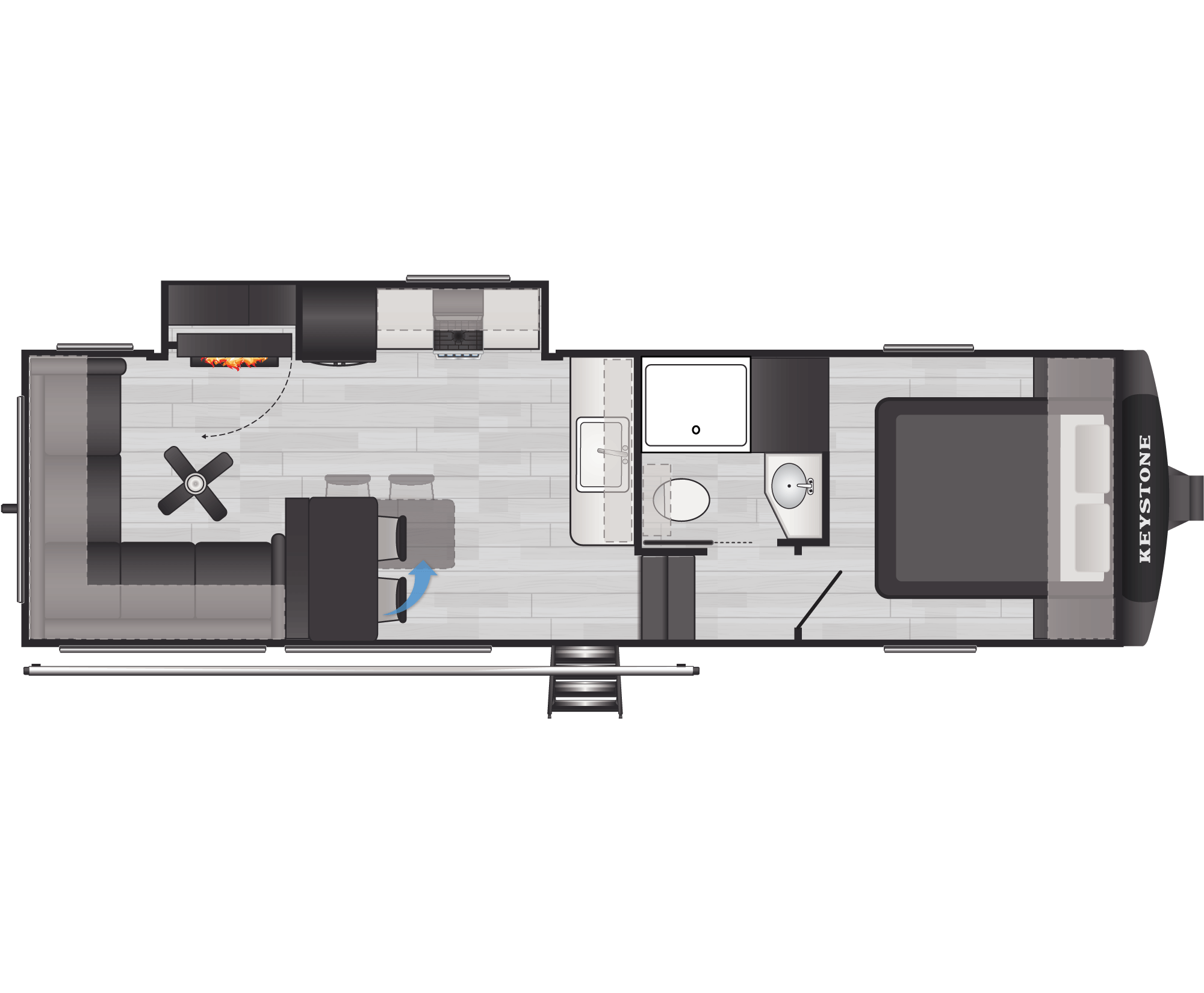

Floorplan of RV model 26RES
Specifications
Specification Name Specification Value
RV Type Fifth Wheel
MSRP $64,595
Shipping Weight 8,155 lb.
Carrying Capacity 1,845 lb.
Hitch 1,795 lb.
Length 30 ft 11 in
Height 12 ft 7 in
Tire-Size ST225/75R15E
Fresh Water 54 gal
Gray Water 60 gal
Waste Water 30 gal
Sleeping Capacity 4
Number of Propane Tanks 2
LPG 40 lb.
Refrigerator Size 10.40 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Decor

Driftwood

Driftwood
2023 Driftwood Cabinetry
2023 Countertops
2023 Flooring
2023 Upholstery
2023 Valance

With the Driftwood decor, the design team took everything owners love about Cougar interiors and brightened it up. Upholstered seating and window valances move to a light stone gray for a refreshing take on Cougar's classic style.

Click swatches for close-up view.

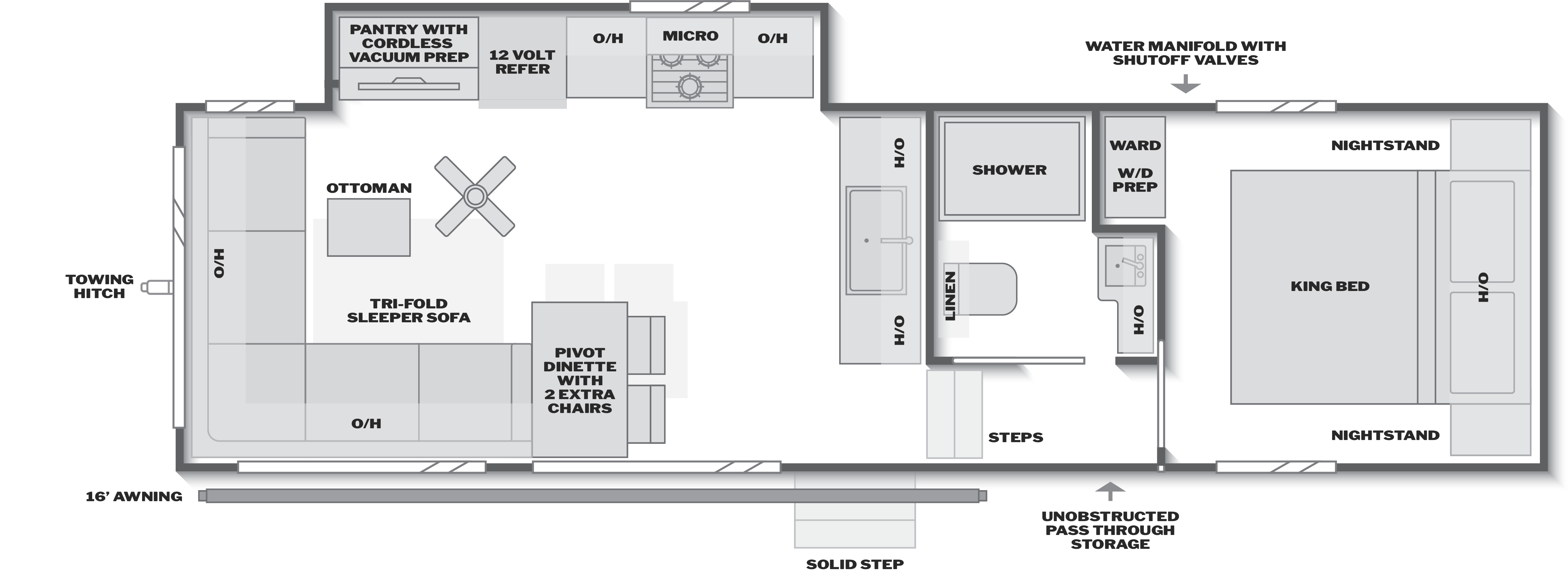

Floorplan of RV model 26RES

26RES

Rear L-shape Sectional, best campside view

New Floorplan
Floorplan of RV model 26RES
MSRP:$64,595*
Base price. Does not include freight, title, tax, options or dealer fees.
    Floorplan of RV model 26RES
    Specifications
    Specification Name Specification Value
    RV Type Fifth Wheel
    MSRP $64,595
    Shipping Weight 8,155 lb.
    Carrying Capacity 1,845 lb.
    Hitch 1,795 lb.
    Length 30 ft 11 in
    Height 12 ft 7 in
    Tire-Size ST225/75R15E
    Fresh Water 54 gal
    Gray Water 60 gal
    Waste Water 30 gal
    Sleeping Capacity 4
    Number of Propane Tanks 2
    LPG 40 lb.
    Refrigerator Size 10.40 cu ft

    Standards & Options

    Exterior

    • Individually Engineered Structural I-beam chassis w/ stamped steel cross-members & outriggers
    • Electric four-point auto leveling system
    • Heluxâ„¢ series coil spring pin box
    • Heavy duty 4,400 lbs. axles with ABS brakes
    • High Performance Road Armorâ„¢ shock absorbing equalizer
    • Bronze bushings, heavy duty 1/2 shackle plates and wet bolts to extend axle longevity
    • Goodyear Endurance 10-ply E-rated tires with road side assistance
    • Custom aluminum luxury wheels and full size spare tire
    • 2" Rear receiver hitch w/ 4-way connector: 300 lbs. tongue weight, 3,000 lbs. GTW
    • 2" Rear accessory receiver with 300 lb. storage capacity
    • Automotive-grade painted fiberglass front cap w/ KeyShieldâ„¢ protection
    • Front cap with dotless neon style LED lighting
    • High intensity LED auxiliary light for hitching
    • AlphaPLY roof membrane w/ Limited Lifetime warranty
    • Tinted safety glass windows
    • Dual-pane, frameless windows
    • Aluminum rear ladder
    • Rear observation camera prep
    • Reverse warning lights in taillight
    • One-piece polypropylene underbelly
    • Dual-heated holding tanks: 12v heat pads and furnace
    • Friction hinge entry door
    • Extra-Wide entry step with composite step treads
    • Slam-latch baggage doors.
    • Awning control switch located in storage compartment
    • Key-Alike lock system
    • Tough-ply flooring in main storage compartment
    • Oversized front storage compartment with strut assisted baggage door
    • Washable PVC sewer hose storage
    • Heavy-duty battery box for dual batteries with EZ hook-up terminals
    • Campsite convenience center for utilities that includes power tank fill
    • Easy access panel for water pump service and filter maintenance
    • Industry's best 55 gal. fresh tank capacity
    • Industry leading holding tank securement with steel cross supports and Tank Guardian strap system
    • Power Watchdogâ„¢ Safeview Smart RV power inlet: 50 amp
    • 50 Amp electric, pre-wired and braced for 2rd AC
    • Hot and cold exterior spray port
    • Campsite tuned speakers
    • Electric awning with gas strut arm with dotless neon style LED lighting
    • Slide-topper package
    • CSA construction and seal

    Interior

    • Tall slide out for added comfort and head room
    • Night roller shades throughout
    • Residential, shaker style hardwood cabinet doors and drawers
    • Lock-It decorative crown molding at wall top edge
    • 5,500 BTU electric fireplace with thermostat control and remote
    • Dimmable lighting: main ceiling, main slideout
    • Recessed flush mount lights in main ceiling
    • Pivot hinge entertainment center with hidden pantry and cordless vacuum prep

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • MY KEYSTONE Owners Mobile App
    • HyperCoreâ„¢ Composite Wall Construction with Vixen Fibroglossâ„¢ HIGH GLOSS finish
    • HyperDeckâ„¢ composite, 100% inorganic and water resistant floor
    • GIGGY BOXâ„¢ 12v power wiring within a protective housing, includes battery disconnect, patented
    • MaxTurnâ„¢ Technology designed in frame and fiberglass front cap, patented
    • Color-coded unified wiring standard
    • Tuf-Lokâ„¢ thermoplastic duct joiners
    • KeyTVâ„¢ multisource signal controller, patented
    • Winegard Air 360+ Omni-Directional Rooftop Antenna w/ exclusive satellite pass-through
    • Residential In-floor heating ducts

    Kitchen Features

    • Residential hardware and soft close hidden hinges on cabinet doors
    • Seamless, pressed countertops
    • Black stainless steel undermount kitchen sink
    • High-rise chef’s faucet and sprayer
    • Trash bin location

    Appliances & Utilities

    • Water management center providing individual shut-off valves for all fixtures
    • Power converter with auto-detect battery recognition
    • (2) 30 lb. LP tanks
    • Exterior LP quick connect
    • Tankless on-demand water heater
    • Furrion 18K BTU Chill Cube, ducted
    • Furrion Quick Cool 15K BTU Ducted Bedroom A/C
    • Foil backed, foam core air conditioning duct with Tuf-Lokâ„¢ thermoplastic joiners
    • 30K BTU ducted furnace
    • LED HDTV in living area 12V Bluetooth® player with HDMI ARC control, 12v USB charging centers, & exterior TV hookup
    • 0.9 Cu. Ft. microwave
    • 21" Furrion® range w/ Piezo ignition and glass stovetop cover
    • Washer/dryer prep

    Bedroom Features

    • Platinum Series 70" x 80" king bed option w/ underbed storage
    • Dimmable lighting: main ceiling
    • Outlets & USB on both sides of bed
    • Cable TV / satellite ready
    • Full wardrobe slide w/ drawers

    Bathroom Features

    • Seamless, pressed countertops with large black stainless steel sink
    • Residential vanity cabinet with drawers
    • Linen storage in bathroom
    • Large shower w/ glass door and skylight
    • Dedicated shower light
    • Oxygenics® shower head and hose
    • Porcelain foot flush toilet
    • Recessed medicine cabinet
    • Towel rack

    Weather Protection

    • Climate Guard protection package
    • Heat-deflecting white sidewalls, membrane and A/C
    • Radiant foil barrier in front cap
    • Remote temperature probes
    • Insulated gooseneck, bulkhead divider, and sealed pin box
    • Insulated slide floors
    • Two roof attic vents
    • 12V electric heat pads on all holding tanks
    • PEX plumbing

    Safety

    • Breakaway switch
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Propane gas leak detector
    • Fire extinguisher
