Build
Back to all Floor Plans

22MLWE

King Bed, Rear bathroom, Rear Kitchen

New Floorplan

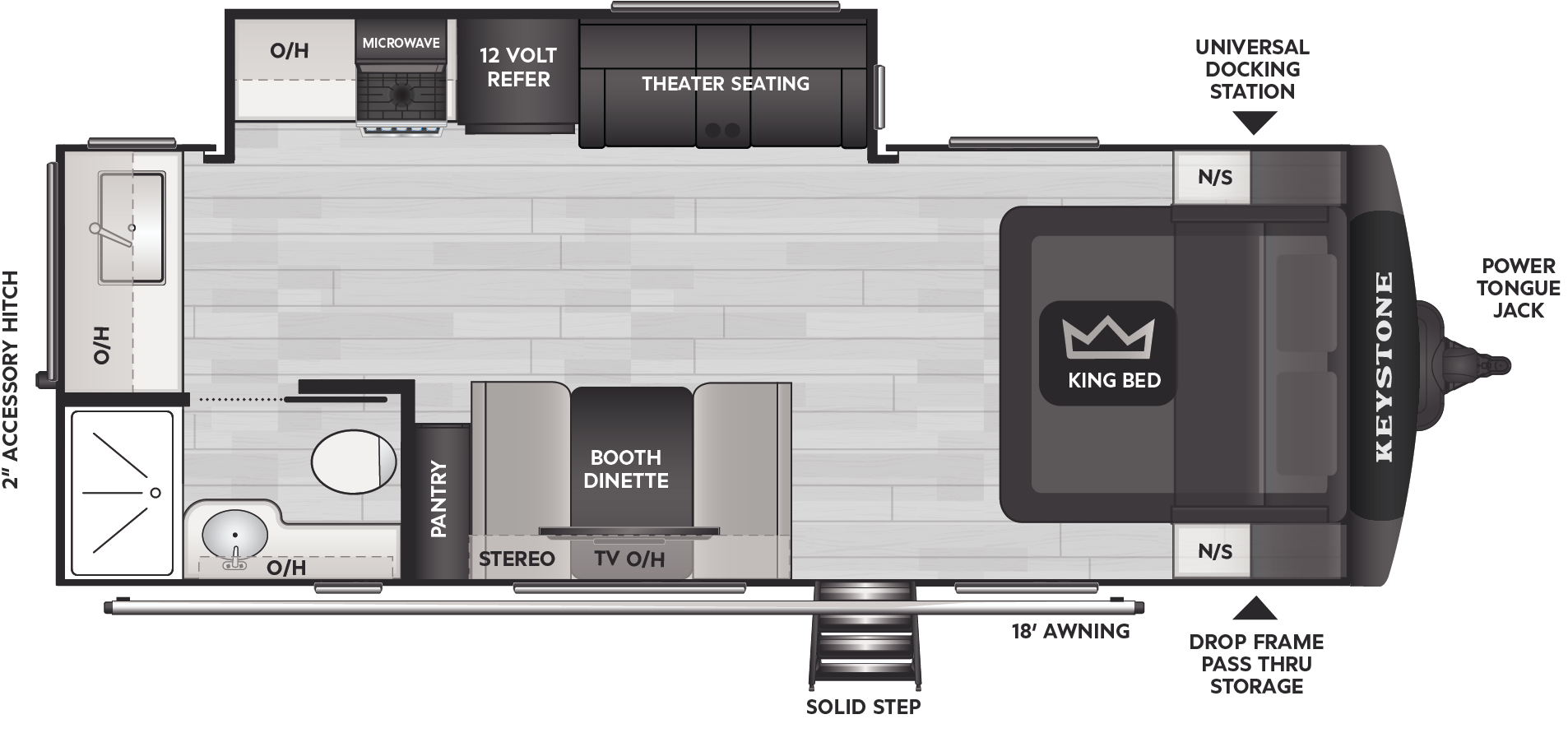

Floorplan of RV model 22MLWE
MSRP:$52,283*
Base price. Does not include freight, title, tax, options or dealer fees.
Build & Price
print only
Floorplan of RV model 22MLWE
Specifications
Specification Name Specification Value
RV Type Travel Trailer
MSRP $52,283
Shipping Weight 5,863 lb.
Carrying Capacity 1,737 lb.
Hitch 620 lb.
Length 26 ft 10 in
Height 11 ft 5 in
Tire-Size ST235/75R15D
Fresh Water 80 gal
Gray Water 38 gal
Waste Water 38 gal
Sleeping Capacity 4
Number of Propane Tanks 2
LPG 60 lb.
Refrigerator Size 10.60 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Decor

Umber Luxe

Umber Luxe
Umber Luxe Cabinetry
Umber Luxe Countertop
Umber Luxe Flooring
Umber Luxe Sofa
Umber Luxe Valance

Click swatches for close-up view.
Floorplan of RV model 22MLWE

22MLWE

King Bed, Rear bathroom, Rear Kitchen

New Floorplan
Floorplan of RV model 22MLWE
MSRP:$52,283*
Base price. Does not include freight, title, tax, options or dealer fees.
    print only
    Floorplan of RV model 22MLWE
    Specifications
    Specification Name Specification Value
    RV Type Travel Trailer
    MSRP $52,283
    Shipping Weight 5,863 lb.
    Carrying Capacity 1,737 lb.
    Hitch 620 lb.
    Length 26 ft 10 in
    Height 11 ft 5 in
    Tire-Size ST235/75R15D
    Fresh Water 80 gal
    Gray Water 38 gal
    Waste Water 38 gal
    Sleeping Capacity 4
    Number of Propane Tanks 2
    LPG 60 lb.
    Refrigerator Size 10.60 cu ft

    Standards & Options

    Exterior

    • Individually Engineered Structural I-beam chassis w/ stamped steel cross-members & outriggers
    • Drop frame construction providing large storage compartment
    • Electric four-point auto leveling system
    • Fast Track Staqbilizer Jacks with Cordless Drill Bit
    • Power tongue jack with 3500 lb. lift and hitch light
    • Heavy duty 4,400 lbs. axles with ABS brakes
    • High Performance Road Armorâ„¢ shock absorbing equalizer
    • Bronze bushings, heavy duty 1/2 shackle plates and wet bolts to extend axle longevity
    • Offroad Rainier ST Apex Tires
    • Custom aluminum luxury wheels and full size spare tire
    • 2" Rear accessory receiver with 300 lb. storage capacity
    • Automotive-grade painted HIGH IMPACT front cap w/ KeyShieldâ„¢ protection
    • Front cap with dotless neon style LED lighting
    • AlphaPLY roof membrane w/ Limited Lifetime warranty
    • Tinted safety glass windows
    • Dual-pane frameless windows
    • Aluminum rear ladder
    • Rear observation camera prep
    • Reverse warning lights in taillight
    • One-piece polypropylene underbelly
    • Dual-heated holding tanks: 12v heat pads and furnace
    • Friction hinge entry door
    • Extra-Wide entry step with composite step treads
    • Slam-latch baggage doors.
    • Awning control switch located in storage compartment
    • Key-Alike lock system
    • Campsite convenience center for utilities
    • Easy access panel for water pump service and filter maintenance
    • Industry's best 80 gal. fresh tank capacity
    • Industry leading holding tank securement with steel cross supports and Tank Guardian strap system
    • Hot and cold exterior shower
    • Campsite tuned speakers
    • Electric awning with gas strut arm with dotless neon style LED lighting
    • Slide-topper package
    • CSA construction and seal

    Interior

    • Night roller shades throughout
    • Residential, shaker style hardwood cabinet doors and drawers
    • Lock-It decorative crown molding at wall top edge
    • Arched rafters with 84" ceiling height, w/ crown molding
    • Recessed flush mount lights in main ceiling
    • Dimmable ceiling lights
    • Theater seating w/ heat & massage
    • 12 volt Power Vent Fan in Kitchen / Livingroom Area

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • MY KEYSTONE Owners Mobile App
    • HyperCoreâ„¢ Composite Wall Construction with Vixen Fibroglossâ„¢ HIGH GLOSS finish
    • HyperDeckâ„¢ composite, 100% inorganic and water resistant floor
    • GIGGY BOXâ„¢ 12v power wiring within a protective housing, includes battery disconnect, patented
    • Color-coded unified wiring standard
    • Tuf-Lokâ„¢ thermoplastic duct joiners
    • Winegard Air 360 LP

    Kitchen Features

    • Residential hardware and hidden hinges on cabinet doors
    • Seamless, pressed countertops
    • Black stainless steel undermount kitchen sink
    • High-rise chef’s faucet and sprayer
    • Booth dinette with accent lighting
    • Trash bin location

    Appliances & Utilities

    • Power converter with auto-detect battery recognition
    • (2) 30 lb. LP tanks
    • Exterior LP quick connect
    • Furrion Quick Cool 15K BTU Ducted Bedroom A/C
    • Furrion quick cool 15K BTU ducted A/C
    • Gas and Electric 6 gallon Water Heater
    • Foil backed, foam core air conditioning duct with Tuf-Lokâ„¢ thermoplastic joiners
    • 30K BTU ducted furnace
    • LED HDTV in living area with 12 volt AM/FM Stereo & exterior TV hookup
    • 0.9 Cu. Ft. microwave
    • 10.6 cu. Ft. 12V Furrion Refrigerator
    • 17" Furrion® range w/ Piezo ignition and glass stovetop cover

    Bedroom Features

    • 70" x 80" king bed w/ underbed storage
    • Dimmable lighting: main ceiling
    • Outlets & USB on both sides of bed
    • Cable TV ready

    Bathroom Features

    • Seamless, pressed countertops with large black stainless steel sink
    • Residential vanity cabinet with drawers
    • Large shower w/ glass door and skylight
    • Dedicated shower light
    • Oxygenics® shower head and hose
    • Porcelain foot flush toilet
    • Medicine cabinet
    • Towel rack

    Weather Protection

    • Climate Guard protection package
    • Heat-deflecting white fog sidewalls & roof membrane
    • Radiant foil barrier in front cap
    • Insulated slide floors
    • Two roof attic vents
    • 12V electric heat pads on all holding tanks
    • PEX plumbing

    Safety

    • Breakaway switch
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Propane gas leak detector
    • Fire extinguisher
