New Floorplan

MSRP:$165,620*
Base price. Does not include freight, title, tax, options or dealer fees.

Specification Name | Specification Value |
---|---|
RV Type | Toy Hauler, Fifth Wheel |
MSRP | $165,620 |
Shipping Weight | 17,310 lb. |
Carrying Capacity | 3,690 lb. |
Hitch | 4,135 lb. |
Length | 46 ft 1 in |
Height | 48 ft 0 in |
Toy Hauler Garage Size | 13 ft 6 in |
Tire-Size | 215/75R17.5H |
Fresh Water | 173 gal |
Gray Water | 104 gal |
Waste Water | 104 gal |
Sleeping Capacity | 7 |
Number of Propane Tanks | 2 |
LPG | 60 lb. |
Refrigerator Size | 20 cu ft |
Decor
Galaxy





Click swatches for close-up view.
Decor
Loam





Click swatches for close-up view.
Innovation Leadership
These models feature exclusive ground-breaking components and technologies from the Keystone Inovation Lab.
12V Distribution Center
Organizes and streamlines 12V wiring connections with disconnect option to prevent unwanted battery draw
READ MORE

MaxTurnâ„¢ Technology
Get an additional 8" of fifth wheel turning radius with Keystone's exclusive MaxTurnâ„¢ Technology.
READ MORE

Omni-Chill®
Exclusive technology allows three A/C's to run simultaneously, providing 35% more cooling power.
READ MORE

Bladeâ„¢ High Performance Air Flow System
Keystone’s new, patented Blade™ air handling system completely re-engineers RV ductwork and vent systems to deliver an average of 20% more cooling power.
READ MORE

4G LTE and WiFi Prep
Keystone RV Company now offers solution that makes it simple, easy and affordable for owners to add Wi-Fi or cellular connectivity.
READ MORE

12V Color-Coded Wiring Standard
Learn how Keystone’s EXCLUSIVE color-coded 12V wiring is different from conventional RV wiring and why it’s a better for both owners and service technicians.
READ MORE

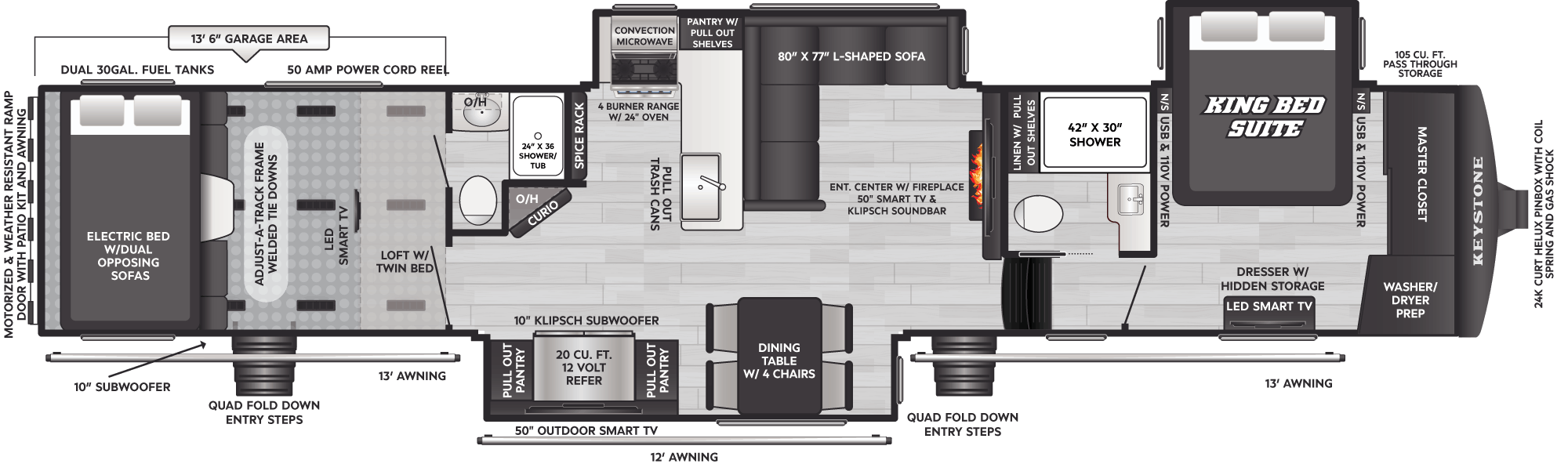

433
Triple Axle, 13'6" Garage, 2 Baths, Large Master Suite
New Floorplan

MSRP:$165,620*
Base price. Does not include freight, title, tax, options or dealer fees.

Specification Name | Specification Value |
---|---|
RV Type | Toy Hauler, Fifth Wheel |
MSRP | $165,620 |
Shipping Weight | 17,310 lb. |
Carrying Capacity | 3,690 lb. |
Hitch | 4,135 lb. |
Length | 46 ft 1 in |
Height | 48 ft 0 in |
Toy Hauler Garage Size | 13 ft 6 in |
Tire-Size | 215/75R17.5H |
Fresh Water | 173 gal |
Gray Water | 104 gal |
Waste Water | 104 gal |
Sleeping Capacity | 7 |
Number of Propane Tanks | 2 |
LPG | 60 lb. |
Refrigerator Size | 20 cu ft |
Standards & Options
Exterior
- 12" I-Beam frame
- MaxTurnâ„¢ Technology w/ Heluxâ„¢ pin box
- High-gloss exterior, laminated sidewalls w/ double-welded aluminum construction
- Square tinted safety glass windows
- Frameless dual-pane windows
- Painted fiberglass cap w/ patented Key Shieldâ„¢ protection & LED lighting
- Three Girard cassette awnings
- Radius roof w/ 5" pre-engineered roof trusses and walkable rafters
- 1-piece Alpha Super Flex TPO membrane (lifetime limited warranty)
- Exterior ladder
- Lippert through frame, rack and pinion expandable room system
- Dexter® E-Z Lube® 7,000 lb axles w/ 12" x 2" self-adjusting electric brakes
- MORryde CRE3000 suspension w/ wet bolts
- H-rated tires (8-year warranty) w/ spare tire
- 6-point hydraulic leveling system
- 78" entry door w/ euro latch
- Lippert collapsable quad step main entry and garage
- Heated and lighted 105 Cu. Ft. pass through storage w/ 1" slam-latch doors
- Furrion® wireless backup camera
- Battery quick-disconnect
- 50" LED smart TV
- Klipsch 10" sub and 7" speakers with 400w Raptor Audio amplifier
- Convenience center (single-point for all system hook-ups)
- Onan 5,500 watt gas generator (standard) w/ 30-gallon fuel tank
- 173 gal. fresh, 104 gal. gray, 104 gal. waste water tanks
- 50 Amp service
- Outside shower- hot & cold w/ 25' coil hose
- One-touch electric awnings w/ LED lights (2)
- Propane quick connect
- Solar prep port in convenience center
Interior
- Designer style vinyl flooring throughout
- 8' tall living room and kitchen slides
- Built in, pull-down window shade
- Residential style wood trimmed windows
- Thomas Payne® furniture equipped power recline, power lumbar and tilting headrest
- New ceiling treatment w/ LED accent lighting
- Fireplace with 5,000 BTU electric furnace
Keystone Exclusives
- 3-year limited structural warranty
- 1-year limited base warranty
- Color-coded unified wiring standard
- 4G LTE and Wi-Fi prep
- Tuf-Lokâ„¢ thermoplastic duct joiners
- KeyTVâ„¢
- In-floor heating ducts
- Tru-fitâ„¢ slide construction
Kitchen Features
- Lasus 24" Range and Oven
- Soft-close hardwood cabinetry w/ hidden hinges, 100 lb. full extension ball-bearing drawer glides
- Solid-surface countertops
- Large farmhouse style stainless steel kitchen sink w/ roll-up sink cover/drying rack
- Upgraded residential pull-out kitchen faucet
- Portable multi-use table
- Free standing dinette table & chairs
- Stainless steel sink
Appliances & Utilities
- (2) 30 lb. LP tanks w/ quick disconnect
- Omni-Chillâ„¢ 3/4 ton high efficiency (3) A/C's
- 35K BTU gas furnace
- Girard tankless on-demand water heater
- 50" LED smart TV w/ Klipsch sound bar and 10" subwoofer
- 50" LED smart TV w/ premium Bluetooth audio
- 20 Cu. Ft. 12V refrigerator
- 30" stainless steel convection microwave
- 4-burner Lusso range and 24" stainless steel oven
- Washer/dryer prep in master bedroom
- Recessed LED can lighting throughout
- Generation 3 iN-Command® smart automation system
Bedroom Features
- 68" x 76" king bed
- New headboard with lighted accent panel
- LED overhead reading lights
- Outlets/USB on both sides of bed
- Decorative bedspread & tufted pillows
- LED smart TV in bedroom
Bathroom Features
- Pressed countertops
- Fiberglass 1-piece shower surround, removable shower head, built-in skylight
- Porcelain foot flush toilet
Weather Package
- Extreme Weather Package
- 12V Tank Heaters
- Heated, insulated, enclosed holding tanks
Safety
- Breakaway switch
- GFI receptacles
- Carbon monoxide detector
- Smoke detector
- Propane gas leak detector
- Fire extinguisher
Garage
- Dyna Span® 1-piece floor decking (25-year warranty)
- 5,000 lb Adjust-A-Track frame welded tie-downs
- Tinted glass door w/ vapor seal
- Lippert Power Play motorized ramp door
- Rear-ramp patio w/ electric awning & side-entry steps
- Three seasons glass patio door
- 2nd full bath
- Half-bath
- 3rd A/C & ducted heat into garage
- On-board fuel station (60-gal capacity)
- Black powder coated ram air ventilation system
- Loft access doors w/ 40" pull-down TV in garage
- HappiJac® bed w/ flip down sofas
