Back to all Floor Plans

29HAVEN

Front Living

New Floorplan

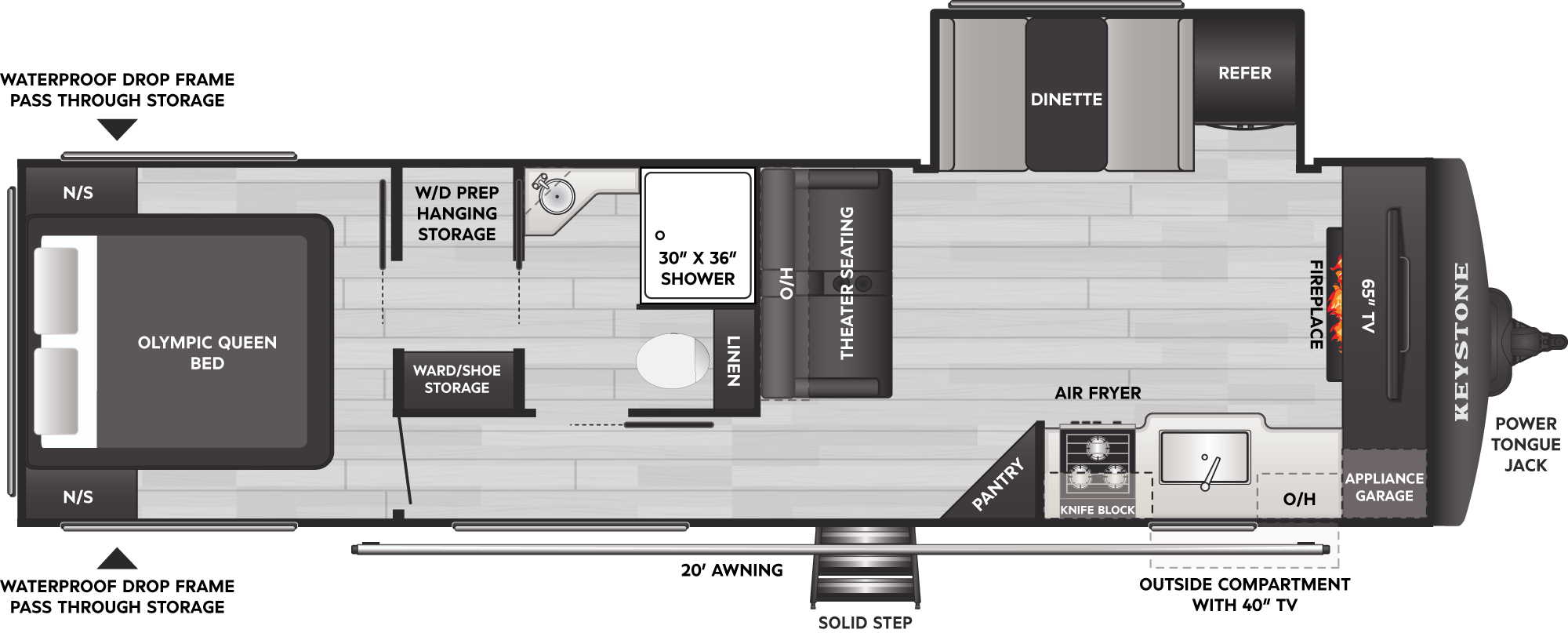

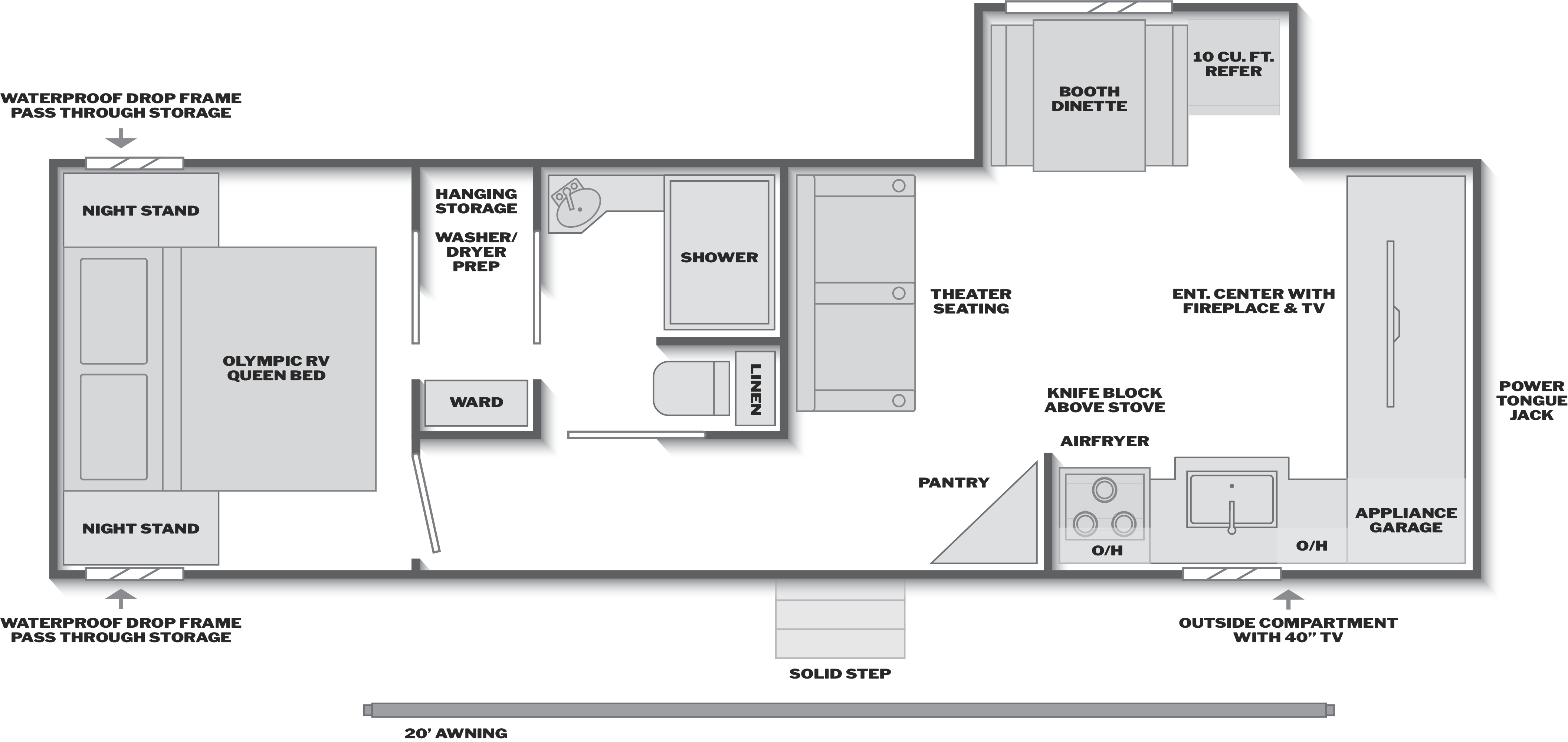

Floorplan of RV model 29HAVEN
MSRP:$51,395*
Base price. Does not include freight, title, tax, options or dealer fees.
Build & Price
print only
Floorplan of RV model 29HAVEN
Specifications
Specification Name Specification Value
RV Type Travel Trailer
MSRP $51,395
Shipping Weight 7,370 lb.
Carrying Capacity 2,130 lb.
Hitch 1,045 lb.
Length 33 ft 11 in
Height 13 ft 7 in
Tire-Size ST225/75R15D
Fresh Water 54 gal
Gray Water 78 gal
Waste Water 30 gal
Sleeping Capacity 4
Number of Propane Tanks 2
LPG 40 lb.
Refrigerator Size 10.70 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Decor

Delfino

Delfino

Click swatches for close-up view.
Floorplan of RV model 29HAVEN

29HAVEN

Front Living

New Floorplan
Floorplan of RV model 29HAVEN
MSRP:$51,395*
Base price. Does not include freight, title, tax, options or dealer fees.
    print only
    Floorplan of RV model 29HAVEN
    Specifications
    Specification Name Specification Value
    RV Type Travel Trailer
    MSRP $51,395
    Shipping Weight 7,370 lb.
    Carrying Capacity 2,130 lb.
    Hitch 1,045 lb.
    Length 33 ft 11 in
    Height 13 ft 7 in
    Tire-Size ST225/75R15D
    Fresh Water 54 gal
    Gray Water 78 gal
    Waste Water 30 gal
    Sleeping Capacity 4
    Number of Propane Tanks 2
    LPG 40 lb.
    Refrigerator Size 10.70 cu ft

    Standards & Options

    Exterior

    • Flat front metal with tough coat
    • 12V Distribution box with battery disconnect
    • Battery tray integrated on frame(up to 2-group 27 batteries)
    • 82" sidewall height
    • 8' wide construction
    • Friction hinge entry door
    • Dual 20lb LP bottle
    • LP tank cover
    • LP quick connect on door side
    • City water connection
    • Reliable rack and pinion slide system
    • Carpetless flush floor slideouts
    • Wineguard Air 360 low profile antenna
    • Fully walkable roof w/3/8" decking
    • XL tinted safety glass windows
    • Lippert On-The-Go rear ladder prep
    • Magnetic baggage door holders
    • LED running and marker lights
    • Marine-grade Dyna Span 5/8" seamless floor decking w/25 year Limited Lifetime warranty
    • Exterior outlet on camp side
    • Radial tires
    • AlphaPly TPO roof membrane w/Limited Lifetime warranty
    • One piece enclosed underbelly
    • Black tank flush
    • Spare tire kit
    • SolarFlexâ„¢ ready solar prep
    • Power tongue jack
    • Power stabilizer jacks
    • XL entry assist handle
    • Window in entry door
    • SolidStep entry steps
    • Exterior cable hookup on door side
    • Outside TV compartment w/40" TV
    • Furrion® backup camera prep
    • 54 gal. fresh tank
    • High capacity holding tanks
    • 20' Power awning w/LED lights
    • Slideout awning topper prep
    • Tire Linc Prep
    • Outside shower w/hot and cold water
    • Rear bumper w/sewer hose storage
    • 50 Amp service
    • Dual campground friendly exterior speakers
    • Four fishing rod holders
    • Full length pass through storage
    • Exterior table with integrated storage
    • Neon LED light strip
    • Convience center
    • Massive waterproof drop frame storage w/dual drains

    Interior

    • XL master bed (66"X80")
    • Beverage bottle opener
    • LED lighting throughout
    • Up to 7 Inverter prepped 110V outlets
    • Storage cabinet doors under dinette
    • 10.25 gallon storage bins under dinette bases
    • EZ-Slide metal ramp for removable storage bins under dinette
    • 16" x 20" picture frame(s)
    • Oversized windows in slideout
    • Decorative Keystone logos on slideout facia
    • TV hook-up directly across from primary seating
    • Full access to bathroom when slide is closed
    • 65" LED TV
    • 30" fireplace w/ 5,000 BTU electric heater
    • Bluetooth sound system w/TV passthrough capability
    • Dual interior speakers
    • 82" interior height
    • Etched black metal header w/remote RGB lighting over TV
    • "Do More" dinette table
    • Blackout night shades
    • USB A and C connections throughout

    Keystone Exclusives

    • 3-year limited structural warranty
    • 1-year limited base warranty
    • Color-coded unified wiring standard
    • Tuf-Lokâ„¢ thermoplastic duct joiners
    • In-floor heating ducts
    • Tru-fitâ„¢ slide construction
    • I-beam frame w/ stamped steel cross-members & outriggers

    Kitchen Features

    • Hi rise kitchen faucet w/pull out sprayer
    • Stainless steel sink
    • Max storage cabinets with shelf
    • Full extension kitchen drawer glides
    • Mounted paper towel holder
    • Pots and pans drawer below oven
    • Kitchen trash can in base cabinet
    • At least three drawers
    • Silverware divider
    • Backlit "Keystone" arch over kitchen window
    • Knife block behind range
    • Pantry
    • Upgraded kitchen drawers w/full height sides
    • Appliance garage
    • Central vac
    • Seamless pressed membrane countertops
    • Extra countertop space
    • Range hood

    Appliances & Utilities

    • 18,000 BTU Chill Cube A/C + 2nd 8,000 BTU bedroom/bathroom A/C
    • 30K BTU Furnace
    • 42K BTU tankless water heater
    • Lithium ready Auto-Detect 12V Converter
    • 0.9 Cu. Ft. convection microwave w/air fryer
    • 10.7 Cu. Ft. 12V refrigerator
    • 3 burner gas & 17" oven w/ glass cover
    • LED lighting
    • Stackable washer & dryer prep

    Bedroom Features

    • TV hook-up prep
    • Private main bedroom
    • Dual mirrored wardrobes w/hanging storage
    • Olympic Queen size bed
    • Modern Headboard w/sconce light fixtures
    • Metal window valances
    • Pleated window shades
    • Egress exit window
    • Three 16 gallon storage bins under main bed
    • Open storage under bed
    • Walkthrough closet w/dual hanging rods, wardrobe, & shoe storage
    • 60 Sq. Ft. of windows surrounding bedroom
    • Dedicated bedroom light switch
    • Stylish comforter w/drop design
    • Walkaround bed

    Bathroom Features

    • Medicine cabinet
    • Decorative shower surround
    • Oval bathroom sink
    • Skylight above shower
    • 12V vent fan
    • Water heater monitor panel
    • Dual pocket door walkthrough bathroom to maximize space
    • Bathroom trash can in vanity cabinet
    • Upgraded robust porcelain toilet
    • Mounted toilet paper holder
    • Hand towel holder
    • Toiletry storage shelf
    • 30" x 36" shower
    • Decorative shower curtain
    • Upgraded Oxygenics Furyâ„¢ Showerhead
    • Dedicated bathroom light switch

    Safety

    • Tow plug and chain holder
    • Breakaway switch
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Propane gas leak detector
    • Fire extinguisher
