3520RDS

Rear Den / Oversized U-shaped Kitchen / King Bed Slide

New Floorplan
Floorplan of RV model 3520RDS
Configure

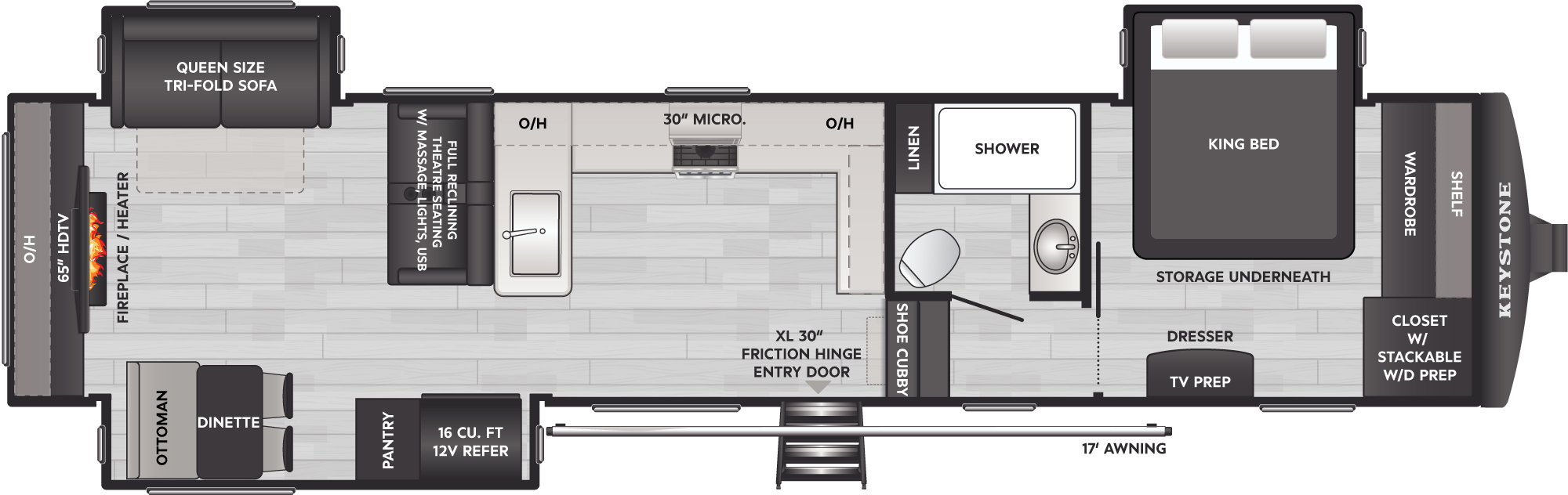

print only
Floorplan of RV model 3520RDS
Specifications
Specification Name Specification Value
RV Type Fifth Wheel
Shipping Weight 11,441 lb.
Carrying Capacity 2,459 lb.
Hitch 2,240 lb.
Length 39 ft 5 in
Height 13 ft 4 in
Tire-Size ST235/80R16E
Fresh Water 75 gal
Gray Water 78 gal
Waste Water 44 gal
Sleeping Capacity 4
Number of Propane Tanks 3
LPG 60 lb.
Refrigerator Size 16 cu ft

Standards & Options*

Standard
Optional

*Throughout the year, Keystone RV may modify model features, floor plans, and specifications. Website data typically reflects the most recent production run, however, any or all of these items are subject to change without notice. Please check with your dealer to for the details specific to the unit you are purchasing. You should also read all labels that are on each trailer for information concerning the safe operation of the unit and its components, actual weight(s), cargo carrying capacity, and tire information. MAKE SURE YOUR TOW VEHICLE IS COMPATIBLE WITH YOUR KEYSTONE RV. Owners of Keystone recreational vehicles are solely responsible for the selection and proper use of tow vehicles. For more information about the safe operation and use of various systems, Keystone service warranties and how to obtain service, extended use, towing, and maintenance, click here to review the Keystone Owner’s Manual. Component and appliance manuals can be found in the trailer.

Decor

Teak

Teak
Cabinets
Sofa
Countertops
Flooring
Accent Fabric

Click swatches for close-up view.

Decor

Sand

Sand
Cabinets
Countertops
Flooring
Accent Fabric

Click swatches for close-up view.
Floorplan of RV model 3520RDS

3520RDS

Rear Den / Oversized U-shaped Kitchen / King Bed Slide

New Floorplan
Floorplan of RV model 3520RDS
    print only
    Floorplan of RV model 3520RDS
    Specifications
    Specification Name Specification Value
    RV Type Fifth Wheel
    Shipping Weight 11,441 lb.
    Carrying Capacity 2,459 lb.
    Hitch 2,240 lb.
    Length 39 ft 5 in
    Height 13 ft 4 in
    Tire-Size ST235/80R16E
    Fresh Water 75 gal
    Gray Water 78 gal
    Waste Water 44 gal
    Sleeping Capacity 4
    Number of Propane Tanks 3
    LPG 60 lb.
    Refrigerator Size 16 cu ft

    Standards & Options

    Exterior

    • Enhanced Exterior Graphics w/ Integrated print
    • High Gloss Fiberglass Exterior
    • S-Lock Skirt Metal System
    • Full Body Paint
    • Rear ladder prep
    • Suburban StowAway Entry Step with 33% Larger first step
    • High Performance G-Rated Radial Tires w/ Balancing Beads
    • 2" Receiver Hitch w/ 4 way hook up - 3,000lb Limit
    • Seal-In-Place Locking Slam Latch Baggage Doors
    • LP quick connect
    • Electric awning with friction hinge adjustment, LED light strip, & manual override
    • Black tank flush

    Interior

    • Congoleum® vinyl flooring w/ one-piece Dyna Spanâ„¢ marine grade decking
    • Black out night shades
    • Floating style made deck steps with Shoe storage
    • Designer upholstered window valances
    • Residential style screwed & glued cabinetry
    • Theater seating w/ USB Charging
    • Thomas Payne luxury collection furniture
    • 5.5K BTU electric fireplace w/ thermostat control & remote
    • Maxx Air® power vent fan(s) w/ rain sensor

    Kitchen Features

    • 22" deep drawers w/ full extension heavy-duty guides
    • Solid surface countertops
    • Deep single-basin stainless steel industrial sink
    • High-rise pull out faucet & sprayer
    • Free Standing Dinette with Ottoman and 2 Chairs
    • Wood beam style pendant light soffit
    • Pendant lights over kitchen island

    Appliances & Utilities

    • (2) 30 lb. LP tanks w/ auto changeover
    • (2) Air conditioning units
    • 3rd. A/C
    • 30K BTU Furnace
    • Contoure tankless on-demand 65,000BTU water heater
    • Premium entertainment center w/ HD LED TV, Multi Zone Stereo, exterior TV hook-up & speakers
    • 16 Cu. Ft. 12V refrigerator
    • Stainless steel microwave w/carousel
    • Oversized 30" over the range microwave
    • Free Standing Residential Gas Range / Oven
    • Stackable washer/dryer prep
    • High Output LED Ceiling Lights
    • Traditional Central Command Center
    • Gray Tank Food Away Flush (Kitchen Sink Gray Tank)

    Bedroom Features

    • 70" x 80" king bed w/ gas strut storage
    • LED reading lights above bed
    • Upgraded bedspread
    • TV hook-up

    Bathroom Features

    • Large 48 x 30 shower
    • 30 x 22 Shower Skylight
    • Marbled Shower Surround
    • Porcelain foot flush toilet

    Safety

    • Breakaway switch
    • GFI receptacles
    • Carbon monoxide detector
    • Smoke detector
    • Fire extinguisher
