SolarFlex 1200i-L

Built for dry camping pros, SolarFlex 1200i-L is the gold standard for RV solar power performance. With this package, we've doubled both solar collection and lithium-ion battery storage. Every electrical component and outlet is solar energy ready – including the air conditioners. If energy consumption ever outstrips supply, an intelligent energy management system will restrict power to non-critical components, eliminating tripped breakers. A hybrid inverter/charger allows owners to charge batteries from multiple sources (i.e. shore power, solar array, or a generator) simultaneously.

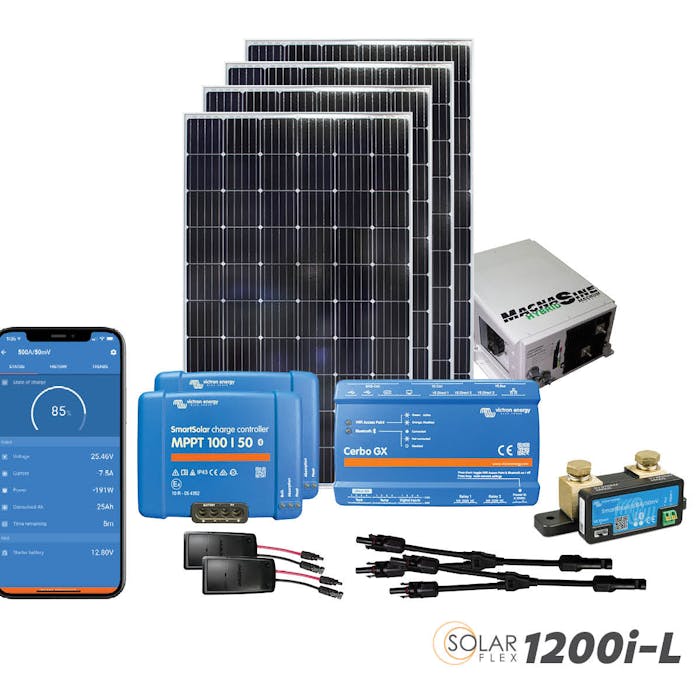

COMPONENTS
  • 2, 30A solar roof ports w/ MC4 connectors & 10 AWG MPPT solar charging circuits
  • 4, Future Solutions 300-watt solar panels & CS2 splitters
  • 2, 50A Victron SmartSolar MPPT charge controllers w/Bluetooth app
  • 3000-watt inverter/charger w/ built-in transfer switch (all outlets inverted)
  • 2, soft start air conditioners
  • Zamp Solar portable solar charge port
  • Victron SmartShunt battery monitor w/Bluetooth app
  • Victron Cerbo GX
  • Battery Guardian
  • 2, 270 Ah Dragonfly Energy heated Lithium-ion batteries
WHAT YOU CAN EXPECT:

SolarFlex 1200i-L is the ideal setup for power users looking for extended boondocking adventures. With the right conditions and ultra-fast charging, campers will have a solid power supply to run onboard systems, air conditioning, and appliances. 540Ah of stored energy allows owners to bank energy to power through days with sub-optimal weather conditions. Victron’s CerboGX provides complete visibility, control, and energy analysis to maximize your time off the grid.

Another bonus? With SolarFlex 1200i-L your RV can be the ultimate guest quarters. A hybrid inverter allows the coach to operate as if it is on 30A service when plugged into a 10A residential outlet, simultaneously refilling the battery bank with solar and shore power.

GO TO SOLARFLEX 1200i-L QUICK START GUIDE

SHOP BRANDS WITH SOLARFLEX 1200i-L

Exclusively available on Montana.

EXPLORE PACKAGES:

SolarFlex 200; SolarFlex 400i; SolarFlex 600i-L

RETURN TO SOLARFLEX HOME PAGE
EXPAND YOUR SYSTEM

Although the SolarFlex 1200i-L is pretty darn robust, owners still have options to enhance this package.

TO ADD SOLAR ENERGY COLLECTION + FASTER CHARGING

TO ADD POWER STORAGE

  • Install additional Dragonfly Energy® heated Lithium-ion batteries (KRV part# 653851) and parallel cable kit, available exclusively through authorized Keystone RV dealers
TECHNICAL SPECIFICATIONS

SOLAR PANEL MECHANICAL PARAMETERS

  • Approximate Dimensions: 65"H x 39"W X 1.38"
  • Approximate Weight: 49.6 lbs.
  • Junction Box: IP65 x/Bypass Diodes
  • Solar Cable: 35.43"L
  • Connectors: MC4
  • Encapsulate: EVA
  • Back Cover: Composite Sheet (White)
  • Frame: Anodized Aluminum Alloy
SOLAR PANEL SPECS (EACH/TOTAL SYSTEM)
  • Pmax/W: 330/1320
CHARGE CONTROLLER SPECS
  • Enclosure: IP43 (electronic components); IP22 (connection area)
  • Protection: PV reverse polarity; output short circuit; over temperature
  • Standard(s) Listings: EN/IEC 62109-1; UL 1741; CSA C22.2
